Inverted Camera AOI

Post-reflow Defects, Nowhere to Hide

Powerful algorithm logic for post wave soldering inspection of SMT and odd shape components.

Fast programming, auto-generate thru hole inspection window with one-click function.

Automatic compensation for PCB deformed by high temperature effects makes our machine just as suitable for FPC.

Optical fiber sensor is featured to trigger board drop alarm.

Pulley type conveyor is more resistant to high temperature, dirt and heavy loads.

Inverted Camera AOI

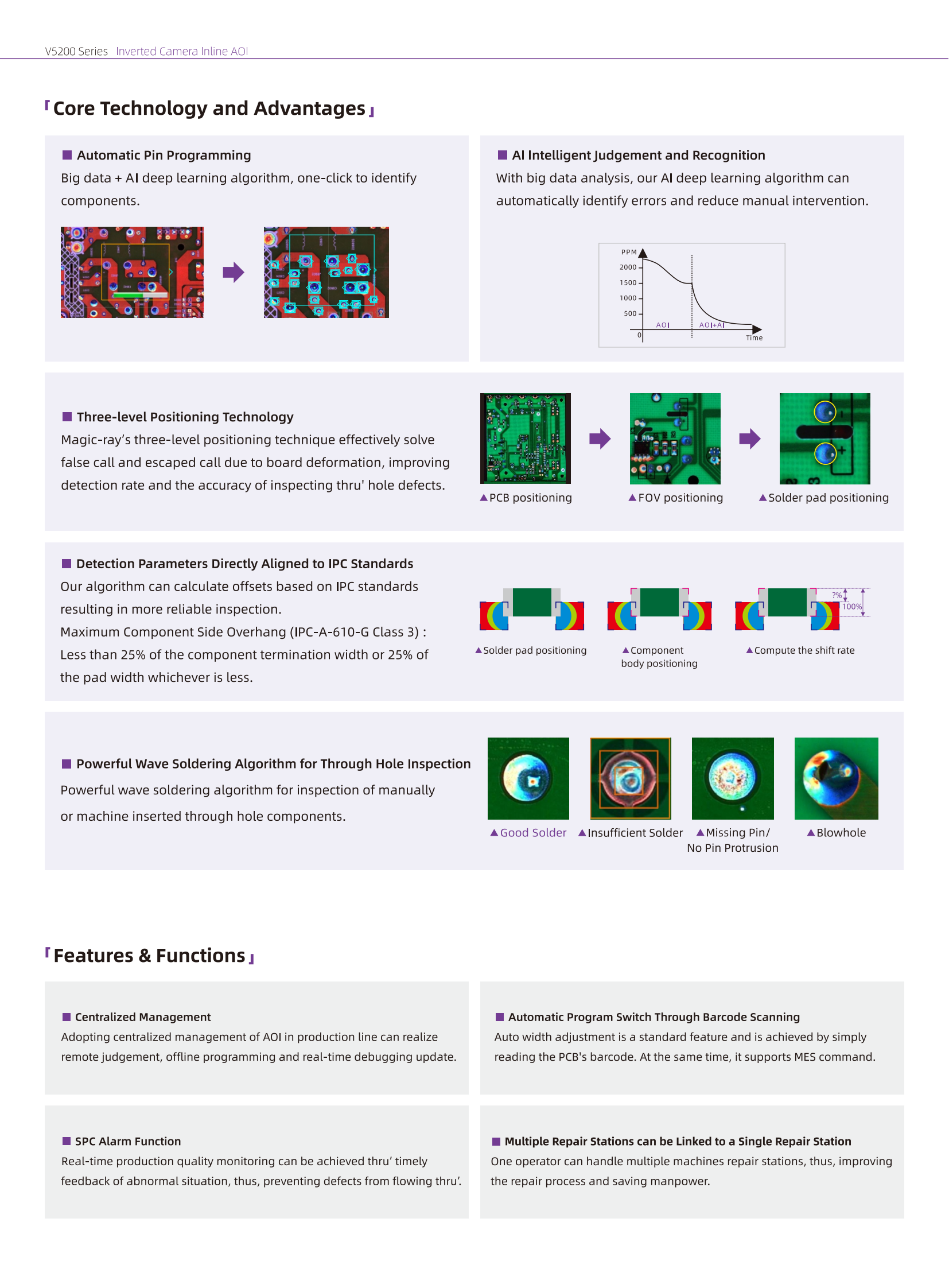

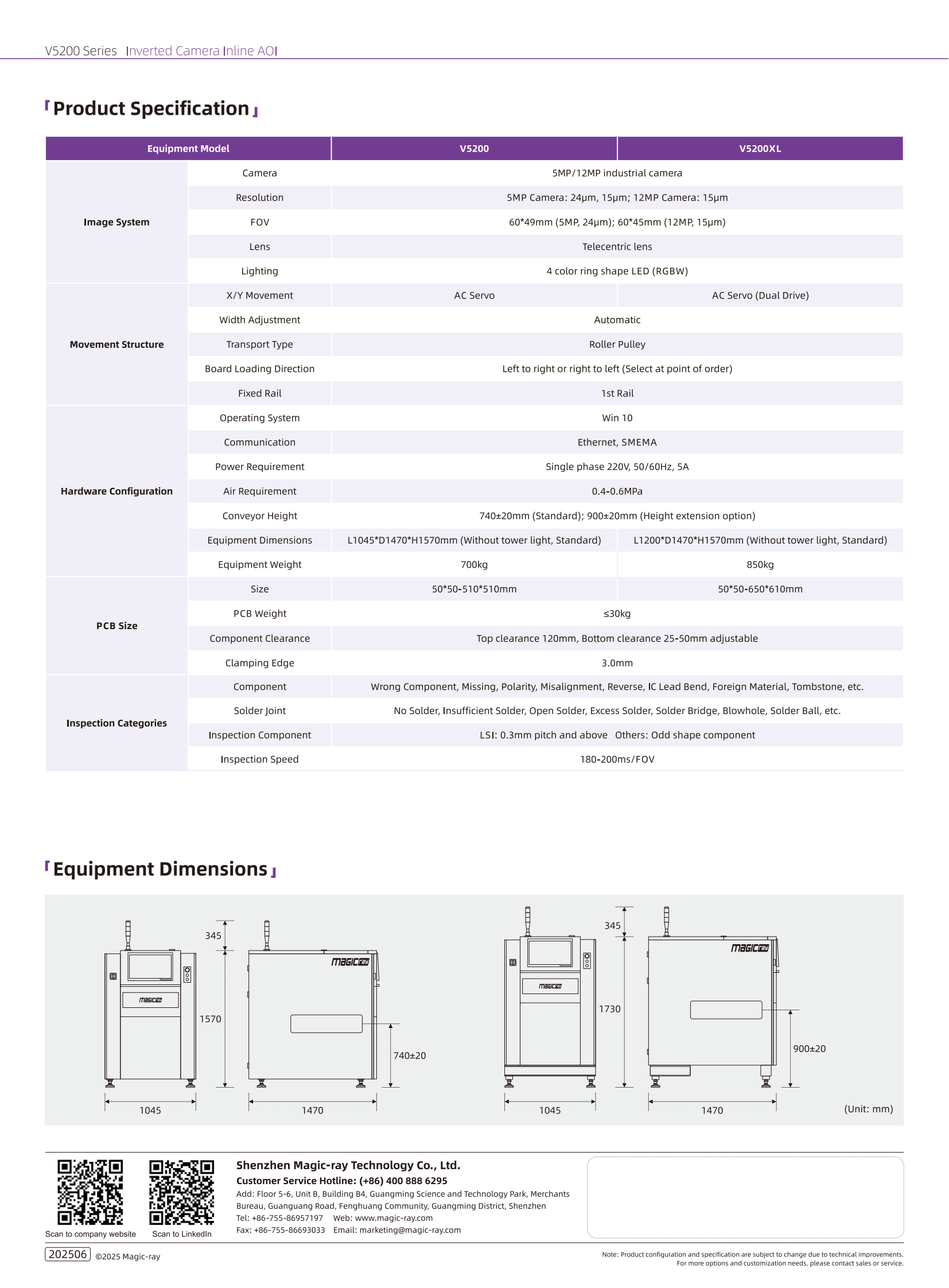

Technology & Advantages Technical Specification
